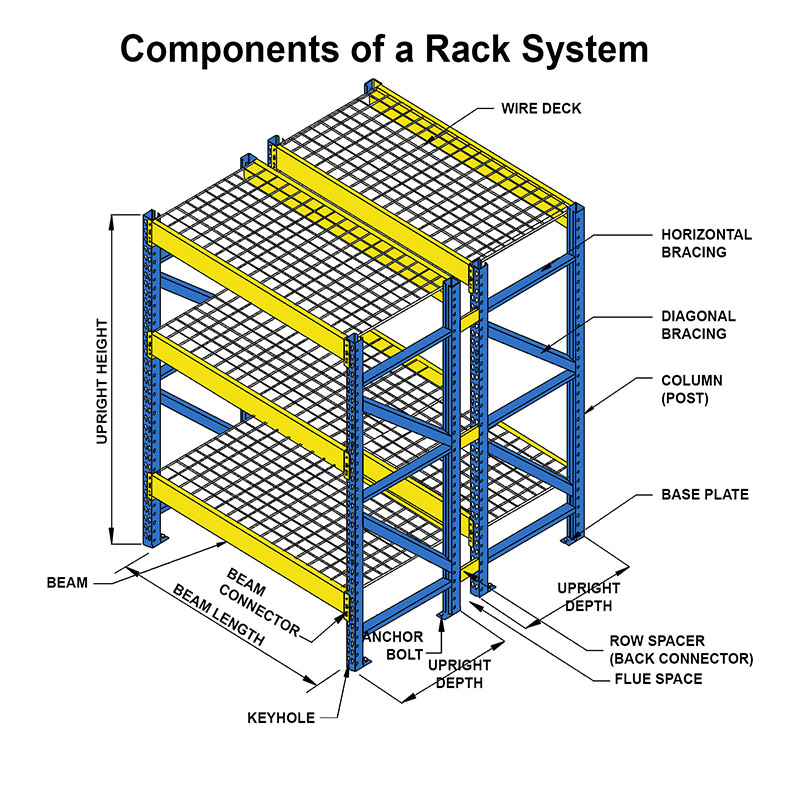

Heavy duty rack usually consists of upright frame,beam,pallet support and other standards components. H-bracing and D-bracing connect with upright by self-lock bolts,which can effectively prevent racking from losing balance cause by the release of the bolts; Drum-shaped holes are punched on the upright, so that beam can be adjusted 75mm.

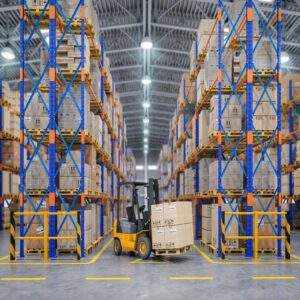

Standard pallet racking is by far the most versatile racking as it is available with many configurations, A wide range of accessories and requires no specialized handling equipment. Pallet racking is easily utilized with standard forklifts-and trolleys. Pallet racking is the ideal starting point for all your warehouse and storage needs.
Adjustable pallet racking systems come in many different styles, but it is important to get the basics right. For safe and forklifts operation, Pallet rack system must be suitable for handlingequipment and loading. Pallet racking systems may have to work with counterbalance trucks,reach trucks,narrow aisle trucks or automated handling equipment.
Upright:
Two columns composed of beams, brace bolt connection,can effectively prevent the bolt looseness caused by shelves instability, it has a double drum type columns in a hole, hole spacing is 75 mm, so the beam for 75 mm on articulated in the column for the unit to adjust the height of each section. Column horizontal surface consists of 11-13 surface, inertia is apart from the big,strong carrying capacity,strong impact resistance and other advantages, the adoption of "automatic punching before cold bending forming technology,completely avoided because of the-pllr stress concentration may lead to crack of pillarfailure situations.
Beam:
CARDS and beam welded together by two column, beam pole adopts two special "C"shape pipe and make the beam, the thickness,increasing the structure according to the principle of steel structure design,make fulluse of the material load resistant capacity, withlight weight,strong bearing capacity,the characteristics of low cost. When the crossbar is connected with theupright column, the safety pin of the earpiece with special design cannot be easily pulled out, so that the beam can be ensured that the beam will not fall off after the impact.
